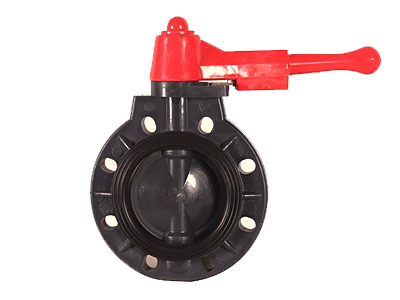

NO | 名稱 | 材質(zhì) |
1 | 閥體 | FRPP閥門、PVDF、CPVC |
2 | 閥瓣 | FRPP閥門、PVDF、CPVC |
3 | 閥桿 | 1Cr18Ni9Ti 45# |
4 | 閥座 | EPDM、FPM |
5 | O型圈 | EPDM、FPM |
6 | 手柄 | ABS |
7 | 螺母 | FRPP閥門、PVDF |
8 | 定位板 | 1Cr18Ni9Ti |
DN | D1 | D2 | D3 | L1 | H | H1 | H2 | N-Φ | 工作壓力（MPa） | 重量=Kg/臺 | |||||
HG | JIS | DIN | ANSI | FRPP | CPVC | PVDF | |||||||||
25 | 35 | 85 | 90 | 85 | 80 | 125 | 185 | 37 | 72 | 60 | 4-17 | 0.7 | 0.9 | 1.0 | 1.1 |
32 | 35 | 100 |
|
|
| 125 | 185 | 37 | 72 | 60 | 4-17 | 0.7 | 0.9 | 1.0 | 1.1 |
40 | 47 | 110 | 105 | 110 | 98.5 | 150 | 200 | 38 | 86 | 70 | 4-18 | 0.7 | 1.2 | 1.3 | 1.5 |
50 | 56 | 125 | 120 | 125 | 120 | 160 | 200 | 40 | 88 | 70 | 4-18 | 0.7 | 1.3 | 1.5 | 1.6 |
65 | 71 | 145 | 145 | 145 | 140 | 185 | 220 | 45 | 100 | 70 | 4-18 | 0.7 | 1.7 | 1.8 | 2.0 |
80 | 85 | 160 | 150 | 160 | 152 | 195 | 280 | 46 | 105 | 85 | 8-18 | 0.7 | 2.3 | 2.5 | 2.7 |
100 | 105 | 180 | 175 | 180 | 190 | 215 | 280 | 55 | 118 | 85 | 8-18 | 0.6 | 4.0 | 4.4 | 4.8 |
125 | 131 | 210 | 210 | 210 | 216 | 250 | 300 | 62 | 163 | 93 | 8-18 | 0.5 | 4.8 | 5.2 | 5.7 |
150 | 153 | 240 | 240 | 240 | 240 | 285 | 300 | 67 | 176 | 93 | 8-22 | 0.5 | 5.5 | 6.1 | 6.5 |
